| उत्पत्ति के प्लेस: | Ningbo China(Mainland) |
| ब्रांड नाम: | FLUIDAC or OEM |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | PVC-1/4-100M |
| न्यूनतम आदेश मात्रा: | 5 piece |
|---|---|
| मूल्य: | USD10-- |
| पैकेजिंग विवरण: | Boxes, Cartons,Wooden cases,Pallets |
| प्रसव के समय: | Within 20 days after receiving payment or deposit |
| भुगतान शर्तें: | टीटी एडवांस / 30% जमा, 70% कॉपी बिल ऑफ लैडिंग, वेस्टर्न यूनियन, पेपैल द्वारा |
| आपूर्ति की क्षमता: | 80000 Meters Per month |
| Applications: | uids transporation pipe | Colours: | White |
|---|---|---|---|
| Material: | PVC non-reinforcement | Product material: | Liquid Hose |
| Feature: | Flexible and soft,easy for pipe work,Non-toxic,tastless,Anti-corrosion | Inch size Out Dia: | 5/64”~2” |
| हाई लाइट: | Air Tube,Pneumatic Plastic Pipe |
||

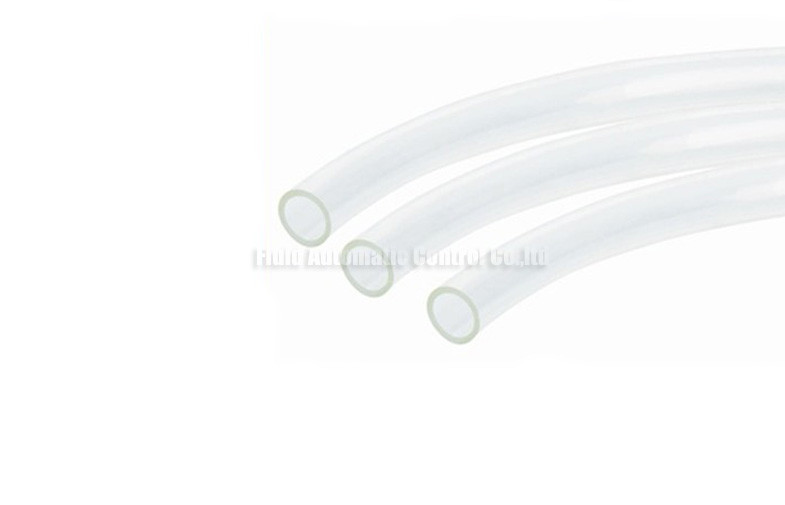

Low Pressure PVC Liquid Hose For Agriculture , Flexible Plastic Tube
PVC material liquid hose non-reinforced Inner Diameter size 5/64”~2” e.g PVC-1/4-100M
Quick Detail:
* PVC liquid hose
* inner Diamter inch size 5/64”~2”
* material:PVC non-reinforcement
* flexible and soft,easy for pipe work
* conform to ROHS environment protection requirement
* pransparent can see inside fluids
* anti-corrosion
* light in weight,cost efffectly
* wide applicable range of tempeature
* non-toxic,tastless
Applications:
PVC liquid hose applicable to industrial,agriculture,farming etc as normal temperature normal pressure fluids transporation pipe,it also can be used as craft and toy parts
Specifications:
|
ORDERING CODE |
||
|
PVC |
1/4 |
100M |
|
Type |
Inner Diameter Inch Size |
Meters/Roll |
|
PVC:PVC Material Liquid Hose |
5/64 |
100M |
|
1/8 |
||
|
5/32 |
||
|
1/5 |
||
|
1/4 |
||
|
5/16 |
||
|
3/8 |
||
|
1/2 |
50M |
|
|
5/8 |
||
|
3/4 |
||
|
1 |
||
|
1-1/4 |
||
|
1-1/2 |
40M |
|
|
2 |
||
SPECIFICATION
|
INCH |
Metric Size |
Meters/Roll |
Normal Using Pressure |
Bursting Pressure |
Weight |
Volume |
|
|
I.D |
O.D |
||||||
|
mm |
mm |
m |
Mpa |
Mpa |
kg/roll |
m3 |
|
|
5/64 |
2 |
4 |
100 |
|
|
1.2 |
|
|
1/8 |
3 |
5 |
100 |
|
|
1.7 |
|
|
5/32 |
4 |
6 |
100 |
|
|
2.2 |
|
|
1/5 |
5 |
9 |
100 |
|
|
5.6 |
0.011 |
|
1/4 |
6 |
8 |
100 |
0.2 |
1 |
3 |
0.016 |
|
5/16 |
8 |
10 |
100 |
0.2 |
0.9 |
3.8 |
0.018 |
|
3/8 |
10 |
12 |
100 |
0.2 |
0.9 |
4.7 |
0.019 |
|
1/2 |
12 |
15 |
50 |
0.15 |
0.8 |
4.3 |
0.021 |
|
5/8 |
15 |
20 |
50 |
0.15 |
0.8 |
9 |
0.023 |
|
3/4 |
19 |
22 |
50 |
0.15 |
0.8 |
6.55 |
0.047 |
|
1 |
25 |
30 |
50 |
0.15 |
0.8 |
14.5 |
0.07 |
|
1-1/4 |
32 |
38 |
50 |
0.15 |
0.8 |
22.4 |
0.068 |
|
1-1/2 |
38 |
44 |
40 |
0.15 |
0.7 |
20.88 |
0.122 |
|
2 |
50 |
58 |
40 |
0.15 |
0.7 |
36.64 |
0.226 |
PVC HOSE,PVC PIPE,PVC TUBE
