| उत्पत्ति के प्लेस: | Ningbo China(Mainland) |
| ब्रांड नाम: | FLUIDAC or OEM |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | MTV32-M5 |
| न्यूनतम आदेश मात्रा: | 5 piece |
|---|---|
| मूल्य: | USD3-- |
| पैकेजिंग विवरण: | Boxes, Cartons,Wooden cases,Pallets |
| प्रसव के समय: | Within 20 days after receiving payment or deposit |
| भुगतान शर्तें: | टीटी एडवांस / 30% जमा, 70% कॉपी बिल ऑफ लैडिंग, वेस्टर्न यूनियन, पेपैल द्वारा |
| आपूर्ति की क्षमता: | 20000 Pieces Per month |
| श्रृंखला: | एमटीवी श्रृंखला | शरीर पदार्थ: | एल्यूमीनियम मिश्र धातु |
|---|---|---|---|
| समारोह प्रकार: | 2/2 , 2/3 , 2/5 | मोशन पैटर्न: | प्रत्यक्ष अभिनय |
| पोर्ट आकार: | एम5, एम6 | उत्पाद: | हाथ टॉगल वाल्व |
| कार्य का दबाव: | 0~1.0MPa | ||
| हाई लाइट: | पैर और हाथ वाल्व,दिशात्मक नियंत्रण वाल्व,लघु हाथ टॉगल वाल्व; |
||

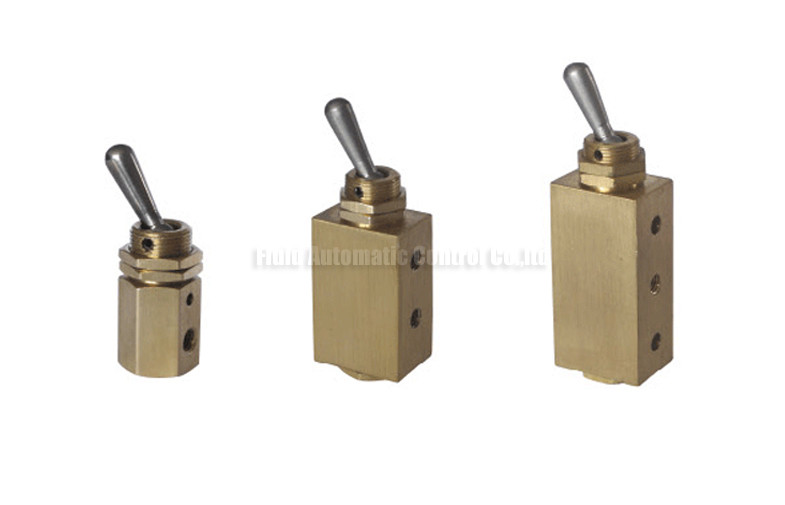

Miniature Two Position Five Way Manual Directional Control Brass Hand Toggle Valve
MTV series miniature hand toggle valve,direct acting type two position two way,two position three way,two position five way,port size M5,M6 compact volume e.g MTV32-M5
Quick Detail:
* MTV series brass miniature hand toggle valve
* Two position Five Way,two position three way,two position two way
* Port Size M5,M6
* Smooth stroke travelling,Sensitive acting respond
* Compact design,miniature type,small volume,flexible application
* Stable design,long service life cycle
Applications:
MTV series Hand Toggle valve manual operated use for fast direction change of Anywhere and anytime necessary function required by manual operating,Due to compact volume,easy and flexible operating,it was widely use in the Pneumatic system
Specifications:
|
ORDERING CODE |
||
|
MTV |
22 |
M5 |
|
Type |
Function Type |
Port Size |
|
MTV:MTV Series Hand Toggle Valve |
22:Two Position Two Way |
M5 |
|
32:Two Position Three Way |
||
|
52:Two Position Five Way |
M6 |
|
|
SPECIFICATION |
|
|
Model no |
MTV Series |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|
Body Material |
Aluminum Alloy |
|
Position And Way Numbers |
Two Position Two way,Two Position Three Way, Two Position-Five Way |
|
Port Size |
M5,M6 |
|
Motion Pattern |
Direct Acting |
|
Working Pressure |
0~1.0MPa |
|
Operating Temperature |
–5~60℃ |
MTV-22
MTV-32
MTV-52
Pneumatic Valve,Hand Toggle valve ,Manual Operated valve
