| उत्पत्ति के प्लेस: | Ningbo China(Mainland) |
| ब्रांड नाम: | FLUIDAC or OEM |
| प्रमाणन: | ISO9001,CE |
| मॉडल संख्या: | VPS-02 |
| न्यूनतम आदेश मात्रा: | 5 piece |
|---|---|
| मूल्य: | USD10-- |
| पैकेजिंग विवरण: | Boxes, Cartons,Pallets |
| प्रसव के समय: | Within 20 days after receiving payment or deposit |
| भुगतान शर्तें: | टीटी एडवांस / 30% जमा, 70% कॉपी बिल ऑफ लैडिंग, वेस्टर्न यूनियन, पेपैल द्वारा |
| आपूर्ति की क्षमता: | 10000 Pieces Per month |
| Product name: | Vacuum Pressure Switche | Switch type: | SPST or SPDT |
|---|---|---|---|
| Operating Temperature Range: | -40° C to 85° C | Protection class: | IP54 |
| switch pressure range: | 20~2500Pa | Mounting position: | Diaphragm in any vertical plane |
| हाई लाइट: | Air Pressure Switch,Flow Switch |
||

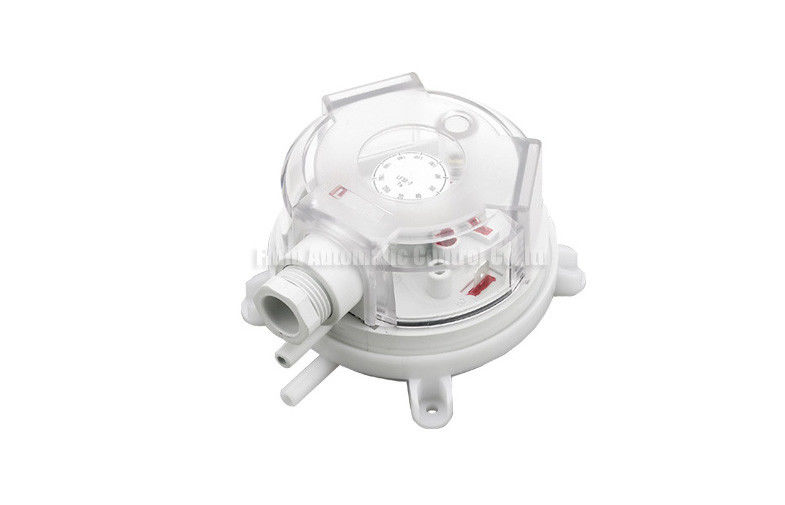

SPST / SPDT 6mm Tube Fast Connecting 20-2500Pa Vacuum Pressure Switches IP54 For Frost Protection
VPS series vacuum switch pressure range 20~2500Pa,6mm tube Diameter fast connect e.g VPS-02
Quick Detail:
* VPS series vacuum pressure switch
* visible contact,no drift pressure setting
* max.working pressure 5KPa
* pressure setpoint can be adjust visually
* 6 mm tube Diameter connection
* IP54 Protection class with cover
* Reliable electronic switch enable sensitive ON/OFF
* low power consumption
* stable design,long service life cycle
Applications:
VPS series vacuum switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor fan and air conditioner. It is also suitable for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can be adjust visually.
Specifications:
|
Series No. |
VPS |
|
Media |
Air, non-combustible and non-aggressive gasses |
|
Max Operating Pressure |
5 kPa |
|
Mounting position |
Diaphragm in any vertical plane |
|
Degree of protection |
IP54 (with cover) |
|
Operating Temperature |
-40° C to 85° C |
|
Contact Arrangement |
SPST or SPDT |
|
Electrical Rating |
Resistance: Initial: <400 milliohms; |
|
1.5A (0.4A) @ 250V |
|
|
Terminals |
6.4 mm(0.25") copper alloy |
|
Connection |
6.0mm Dia. for tube connection |
|
Approval |
UL, CE, RoHS |
|
Model |
Pressure Range |
Differential |
Tolerance |
|
VPS-02 |
20 ~ 200 Pa |
10 Pa |
+/-15% |
|
VPS-03 |
30 ~300 Pa |
10 Pa |
+/-15% |
|
VPS-04 |
40 ~400 Pa |
20 Pa |
+/-15% |
|
VPS-05 |
50 ~ 500 Pa |
20 Pa |
+/-15% |
|
VPS-10 |
200 ~ 1000 Pa |
100 Pa |
+/-15% |
|
VPS-25 |
500 ~ 2500 Pa |
150 Pa |
+/-15% |
Vacuum pressure switch,Vacuum pressure controller,vacuum sensor switch
