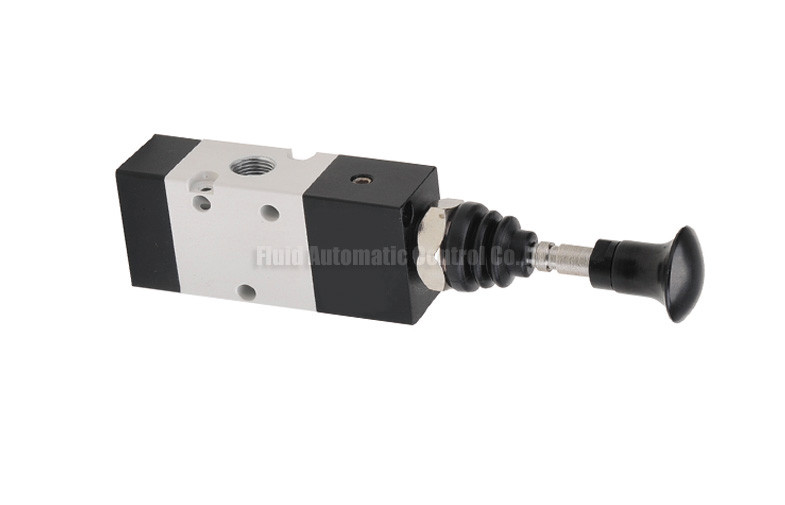

25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way

25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way

    • 25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way
  • 25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way

    उत्पाद विवरण:

    Place of Origin: Ningbo China(Mainland)
    ब्रांड नाम: FLUIDAC or OEM
    प्रमाणन: ISO9001
    Model Number: HDV322N-06S

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5 piece
    मूल्य: USD3--
    Packaging Details: Boxes, Cartons,Wooden cases,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 20000 Pieces Per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Body Material: Aluminum Alloy Function Type: 2 Position 5 Way ,2 Position 3 Way
    Motion Pattern: Direct Acting Port Size: G1/8
    Product: Manual Directional Control Valve Working Pressure: 0~1.0MPa
    हाई लाइट:

    Foot And Hand Valve

    ,

    Directional Control Valve





    25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way

    22mm,25mm body width Metalwork 70 series hand draw valve two position three way and two position five way port size G1/8,G1/4 e.g HDV322N-06S with spring return





    Quick Detail:



    * HDV series Hand Draw Valve

    * Aluminum Alloy Material

    * Two Position Three Way,Two Position Five Way

    * Port Size G1/4,G1/8

    * With spring return for option

    * Easy to operate,Long service life



    Applications:



    HDV series hand draw valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system



    Specifications:



    ORDERING CODE

    HDV

    322N

    6

    S

    Type

    Function Type and Body Width

    Port Size

    Reset Type

    HDV:METALWORK 70 Series hand draw valve

    322N: Two Position Three Way,Body Width 22mm

    6:G1/8"

    Blank:Standard

    332N: Two Position Three Way,Body Width 25mm

    522N: Two Position Five Way,Body Width 22mm

    8:G1/4"

    S:Spring Return

    532N: Two Position Five Way,Body Width 25mm





    SPECIFICATION

    Model no

    HDV Series

    Working Medium

    Compressed 40 Micron Filtered Air

    Body Material

    Aluminum Alloy

    Position And Way Numbers

    Two Position Five Way ,Two Position Three Way

    Port Size

    G1/8" G1/4"

    Motion Pattern

    Direct Acting

    Working Pressure

    0~1.0MPa

    Operating Temperature

    –5~60℃



    25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way 0

    HDV332N-8

    25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way 1

    HDV522N-6

    25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way 2

    HDV532N-8

    25mm MetalWork Manual Directional Control Hand Draw Valve Two Position Three Way 3

    Pneumatic Valve,Hand Valve,Manual Operated valve
