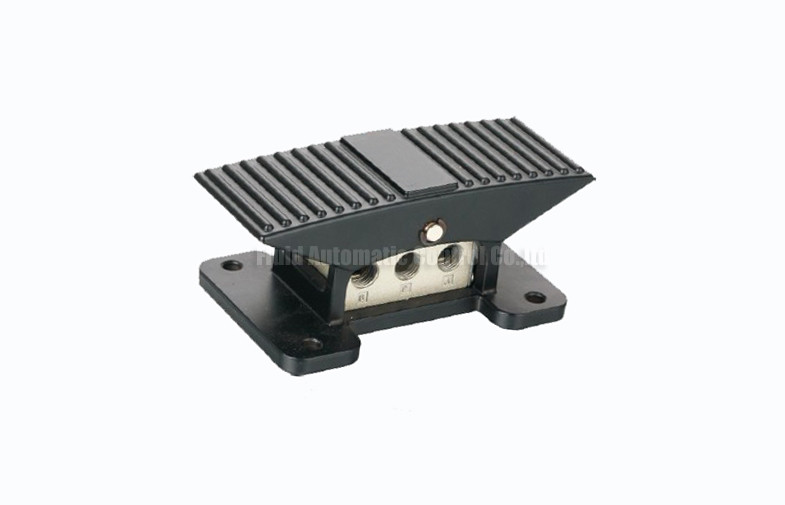

0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve

0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve

    • 0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve
  • 0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve

    उत्पाद विवरण:

    Place of Origin: Ningbo China(Mainland)
    ब्रांड नाम: FLUIDAC or OEM
    प्रमाणन: ISO9001
    Model Number: FPV35-08

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5 piece
    मूल्य: USD12--
    Packaging Details: Boxes, Cartons,Wooden cases,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 20000 Pieces Per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Body Material: Aluminum Alloy Function Type: 3 Position 5 Way
    Max.Pressure Resistance: 1.0MPa Motion Pattern: Direct Acting
    Port Size: G1/4 Product: Pneumatic Foot Pedal Valve
    Working Pressure: 0.2~0.7MPa
    हाई लाइट:

    Pneumatic Valve

    ,

    Directional Control Valve





    0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve

    FPV Foot Pedal Valve three postion five way center close type port size G1/4e Model no FPV35-0





    Quick Detail:





    * FPV Foot Pedal valve

    * Three Position Five way Center Close

    * Port Size G1/4

    * Compact design,small volume,very easy for installing

    * Big Flow rate,Flexible application

    * Stable design,long service life





    Applications:



    FPV foot pedal valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating, and compact design with small volume,it was widely use in the Pneumatic system





    Specifications:



    ORDERING CODE



    FPV

    35

    08



    Type

    Function Type

    Port Size



    FPV:FPV Series Three Position Five way Pedal Valve

    35:Three Position Five Way (Center Close)

    08:G1/4"







    SPECIFICATION

    Model no

    FPV35-08

    Working Medium

    Compressed 40 Micron Filtered Air

    Body Material

    Aluminum Alloy

    Position And Way Numbers

    Three Position Five Way

    Port Size

    G1/4"

    Effective Sectioinal Area

    8mm²

    Motion Pattern

    Direct Acting

    Working Pressure

    0.2~0.7MPa

    Pressure Endurance

    1.0MPa

    Operating Temperature

    0~60℃





    0.7Mpa Compact Pneumatic Foot Pedal Valve 3 Position 5 Way , Directional Control Valve 0

    Pneumatic Valve,Foot Valve,Manual Operated valve
