होम उत्पादPneumatic Flow Control Valve

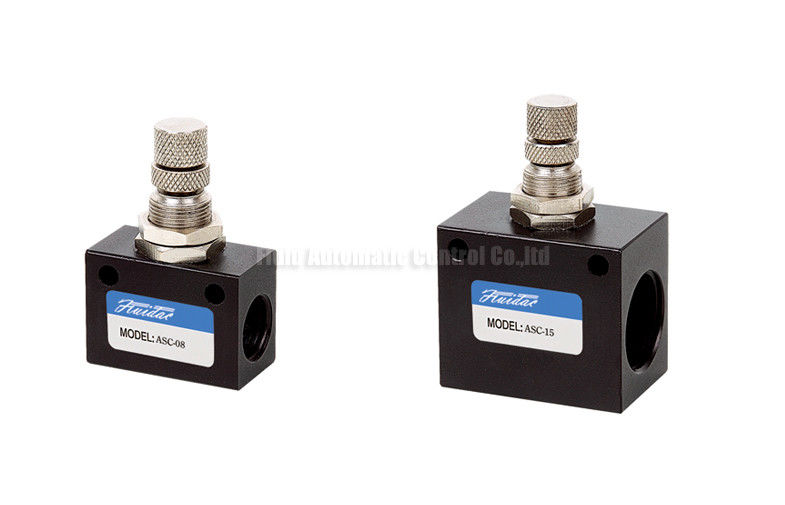

G1/8" - G1/2" One Way Throttle Valve

G1/8" - G1/2" One Way Throttle Valve

    • G1/8" - G1/2" One Way Throttle Valve
  • G1/8" - G1/2" One Way Throttle Valve

    उत्पाद विवरण:

    Place of Origin: Ningbo China(Mainland)
    ब्रांड नाम: FLUIDAC or OEM
    प्रमाणन: ISO9001
    Model Number: ASC-08

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5 piece
    मूल्य: USD2--
    Packaging Details: Boxes, Cartons,Wooden cases,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 20000 Pieces Per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    Port Size: G1/8 Material: Aluminum Alloy
    Operating Temperature: 0~60℃ Product name: flow control throttle check valve
    Working Medium: Compressed 40 Micron Filtered Air Working Pressure: 0~0.95MPa
    हाई लाइट:

    Flow Control Valve

    ,

    Pneumatic Throttle Valve



    ASC Pneumatic Flow Control Valve G1/8" - G1/2" One Way Throttle Valve

    ASC Series high accuracy flow control throttle check valve port size G1/8~G1/2 e.g ASC-08


    Quick Detail:



    *ASC Series flow control throttle check valve
    * Body Material Aluminum Alloy
    * Port Size G1/8”,G1/4”,G3/8,G1/2”
    * Compact design,small volume,light weight
    * Easy operation,sensitive of Respond
    * High regulating accuracy
    * Flow direction one way type
    * Directly pipe joint mounting,easy and convenient
    * Stable design,long serive life



    Applications:



    ASC Series flow control valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
    ASC series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.



    Specifications:




    ORDERING CODE

    ASC

    08

    Type

    Port Size

    KLA:KLA Series Flow Regulating check valve

    06:G1/8

    08:G1/4"

    10:G3/8"

    15:G1/2"



    SPECIFICATION

    Model no

    ASC Series

    Working Medium

    Compressed 40 Micron Filtered Air

    Body Material

    Aluminum Alloy

    Port Size

    G1/8"~G/12"

    Working Pressure

    0~0.95MPa

    Operating Temperature

    0~60℃


    G1/8" - G1/2" One Way Throttle Valve 0
    G1/8" - G1/2" One Way Throttle Valve 1

    Model/Symbol

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    M

    N

    ASC-06

    22

    32

    G1/8

    22

    27

    4.3

    49.7

    56.5

    M6×0.5

    M12×0.75

    12

    18

    26

    8.6

    ASC-08

    26

    36

    G1/4

    22

    27

    4.3

    49.7

    56.5

    M6×0.5

    M12×0.75

    12

    18

    30

    8.6

    ASC-10

    28

    40

    G3/8

    25

    30

    4.3

    52.7

    59.5

    M6×0.5

    M12×0.75

    13

    22

    40.5

    10.2

    ASC-15

    28

    40

    G1/2

    30

    35

    4.3

    58.7

    65.5

    M6×0.5

    M12×0.75

    13.5

    26

    40.5

    10.2

    Pneumatic Valve,Flow control valve ,Thottle check valve
